Chapter 2: Complex Numbers#

“Imaginary numbers are a fine and wonderful refuge of the divine spirit almost an amphibian between being and non-being.”

- Gottfried Leibniz

Real Life Context#

Complex numbers are useful in representing a phenomenon that has two parts varying at the same time, for instance an alternating current. Engineers, doctors, scientists, vehicle designers and others who use electromagnetic signals need to use complex numbers for strong signal to reach its destination. Complex numbers have essential concrete applications in signal processing, control theory, electromagnetism, fluid dynamics, quantum mechanics, cartography, and vibration analysis.

Learning Objectives#

Upon completion of this chapter, students will be able to:

• perform algebraic operations on complex numbers
• plot the complex numbers in Argand plane
• find the conjugate and modulus of a complex number
• find the polar form and Euler form of a complex number
• apply De Moivre theorem to find the $n^{\mathrm{th}}$ roots of complex numbers.

2.1 Introduction to Complex Numbers#

Before introducing complex numbers, let us try to answer the question “Whether there exists a real number whose square is negative?” Let’s look at simple examples to get the answer for it. Consider the equations 1 and 2.

Equation 1: $x^{2}-1=0$

$x=\pm \sqrt{1}$

$x=\pm 1$

Equation 2: $x^{2}+1=0$

$x=\pm \sqrt{-1}$

$x=\pm ?$

Equation 1 has two real solutions, $x = -1$ and $x = 1$. We know that solving an equation in $x$ is equivalent to finding the $x$-intercepts of a graph of $f(x) = x^{2} - 1$ crosses the $x$-axis at $(-1,0)$ and $(1,0)$.

By the same logic, equation 2 has no real solutions since the graph of $f(x) = x^{2} + 1$ does not cross the $x$-axis; we can see this by looking at the graph of $f(x) = x^{2} + 1$.

This is because, when we square a real number it is impossible to get a negative real number. If equation 2 has solutions, then we must create an imaginary number as a square root of $-1$. This imaginary unit $\sqrt{-1}$ is denoted by $i$. The imaginary number $i$ tells us that $i^{2} = -1$. We can use this fact to find other powers of $i$.

2.1.1 Powers of imaginary unit $i$#

We note that, for any integer $n$, $i^{n}$ has only four possible values: they correspond to values of $n$ when divided by 4 leave the remainders 0, 1, 2, and 3. That is when the integer $n \leq -4$ or $n \geq 4$, using division algorithm, $n$ can be written as $n = 4q + k$, $0 \leq k < 4$, $k$ and $q$ are integers and we write

Example 2.1

Simplify the following

(i) $i^{7}$
(ii) $i^{1729}$
(iii) $i^{-1924} + i^{2018}$
(iv) $\sum_{n=1}^{102} i^{n}$
(v) $i i^{2} i^{3} \dots i^{40}$

Solution

(i) $i^{7} = i^{4+3} = i^{3} = -i$
(ii) $i^{1729} = i^{1728} i^{1} = i$
(iii) $i^{-1924} + i^{2018} = i^{-1924+0} + i^{2016+2} = i^{0} + i^{2} = 1 - 1 = 0$

(iv)

(v)

Result: Sum of four consecutive powers of $i$ is zero. That is $i^n + i^{n+1} + i^{n+2} + i^{n+3} = 0 \quad \forall n \in \mathbb{Z}$

Note

(i)

valid only if at least one of $a, b$ is non-negative.

For example,

, a contradiction.

Since we have taken

, we arrived at a contradiction.

Therefore

valid only if at least one of $a, b$ is non-negative.

(ii) For $y \in \mathbb{R}$, $y^2 \geq 0$

Therefore,

EXERCISE 2.1

Simplify the following:

1. $$ i^{1947} + i^{1950} $$
2. $$ i^{1948} - i^{-1869} $$
3. $$ \sum_{n=1}^{12} i^n $$
4. $$ i^{59} + \frac{1}{i^{59}} $$
5. $$ i^2 i^3 \cdots i^{2000} $$
6. $$ \sum_{n=1}^{10} i^{n+50} $$

2.2 Complex Numbers#

We have seen that the equation $x^2 + 1 = 0$ does not have a solution in real number system.

In general there are polynomial equations with real coefficient which have no real solution.

We enlarge the real number system so as to accommodate solutions of such polynomial equations.

This has triggered the mathematicians to define complex number system.

In this section, we define

(i) Complex numbers in rectangular form
(ii) Argand plane
(iii) Algebraic operations on complex numbers

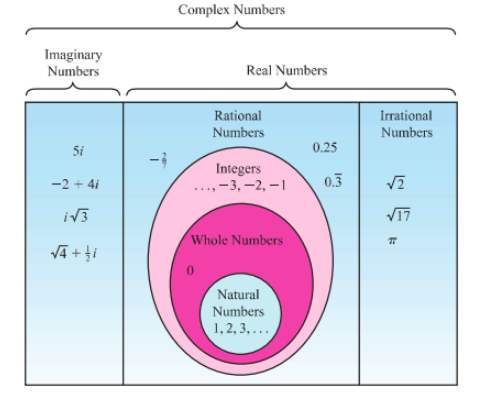

The complex number system is an extension of real number system with imaginary unit $i$.

The imaginary unit $i$ with the property $i^2 = -1$, is combined with two real numbers $x$ and $y$ by the process of addition and multiplication, we obtain a complex number $x + iy$. The symbol ‘$+$’ is treated as vector addition. It was introduced by Carl Friedrich Gauss (1777-1855).

2.2.1 Rectangular form#

Definition 2.1 (Rectangular form of a complex number)

A complex number is of the form $x + iy$ (or $x + yi$), where $x$ and $y$ are real numbers. $x$ is called the real part and $y$ is called the imaginary part of the complex number.

If $x = 0$, the complex number is said to be purely imaginary. If $y = 0$, the complex number is said to be real. Zero is the only number which is at once real and purely imaginary. It is customary to denote the standard rectangular form of a complex number $x + iy$ as $z$ and we write $x = \operatorname{Re}(z)$ and $y = \operatorname{Im}(z)$. For instance, $\operatorname{Re}(5 - i7) = 5$ and $\operatorname{Im}(5 - i7) = -7$.

The numbers of the form $\alpha + i\beta$ $\beta \neq 0$ are called imaginary (non real complex) numbers. The equality of complex numbers is defined as follows.

Definition 2.2

Two complex numbers $z_{1} = x_{1} + iy_{1}$ and $z_{2} = x_{2} + iy_{2}$ are said to be equal if and only if $\operatorname{Re}(z_{1}) = \operatorname{Re}(z_{2})$ and $\operatorname{Im}(z_{1}) = \operatorname{Im}(z_{2})$. That is $x_{1} = x_{2}$ and $y_{1} = y_{2}$.

For instance, if $\alpha + i\beta = -7 + 3i$, then $\alpha = -7$ and $\beta = 3$.

2.2.2 Argand plane#

A complex number $z = x + iy$ is uniquely determined by an ordered pair of real numbers $(x,y)$. The numbers $3 - 8i$, $6$ and $-4i$ are equivalent to $(3, -8)$, $(6,0)$, and $(0, -4)$ respectively. In this way we are able to associate a complex number $z = x + iy$ with a point $(x,y)$ in a coordinate plane. If we consider $x$ axis as real axis and $y$ axis as imaginary axis to represent a complex number, then the $xy$-plane is called complex plane or Argand plane. It is named after the Swiss mathematician Jean Argand $(1768 - 1822)$.

A complex number is represented not only by a point, but also by a position vector pointing from the origin to the point. The number, the point, and the vector will all be denoted by the same letter $z$. As usual we identify all vectors which can be obtained from each other by parallel displacements. In this chapter, $\mathbb{C}$ denotes the set of all complex numbers. Geometrically, a complex number can be viewed as either a point in $\mathbb{R}^{2}$ or a vector in the Argand plane.

Illustration 2.1

Here are some complex numbers: $2 + i, -1 + 2i, 3 - 2i, 0 - 2i, 3 + \sqrt{-2}, -2 - 3i, \cos \frac{\pi}{6} + i \sin \frac{\pi}{6}$, and $3 + 0i$. Some of them are plotted in Argand plane.

2.2.3 Algebraic operations on complex numbers#

In this section, we study the algebraic and geometric structure of the complex number system.
We assume various corresponding properties of real numbers to be known.

(i) Scalar multiplication of complex numbers:#

If $z = x + iy$ and $k \in \mathbb{R}$, then we define

In particular, $0z = 0$, $1z = z$ and $(-1)z = -z$.

The diagram below shows $kz$ for $k = 2, \frac{1}{2}, -1$.

(ii) Addition of complex numbers:#

If $z_1 = x_1 + iy_1$ and $z_2 = x_2 + iy_2$, where $x_1, x_2, y_1, y_2$ and $y_2 \in \mathbb{R}$, then we define

We have already seen that vectors are characterized by length and direction, and that a given vector remains unchanged under translation. When $z_1 = x_1 + iy_1$ and $z_2 = x_2 + iy_2$, then by the parallelogram law of addition, the sum $z_1 + z_2 = (x_1 + x_2) + i(y_1 + y_2)$ corresponds to the point $(x_1 + x_2, y_1 + y_2)$. It also corresponds to a vector with those coordinates as its components. Hence the points $z_1, z_2,$ and $z_1 + z_2$ in complex plane may be obtained vectorially as shown in the adjacent

(iii) Subtraction of complex numbers#

Similarly the difference $z_{1} - z_{2}$ can also be drawn as a position vector whose initial point is the origin and terminal point is $(x_{1} - x_{2}, y_{1} - y_{2})$. We define

It is important to note here that the vector representing the difference of the vector $z_{1} - z_{2}$ may also be drawn joining the end point of $z_{2}$ to the tip of $z_{1}$ instead of the origin. This kind of representation does not alter the meaning or interpretation of the difference operator. The difference vector joining the tips of $z_{1}$ and $z_{2}$ is shown in (green) dotted line.

(iv) Multiplication of complex numbers#

The multiplication of complex numbers $z_{1}$ and $z_{2}$ is defined as

Although the product of two complex numbers $z_{1}$ and $z_{2}$ is itself a complex number represented by a vector, that vector lies in the same plane as the vectors $z_{1}$ and $z_{2}$. Evidently, then, this product is neither the scalar product nor the vector product used in vector algebra.

Remark

Multiplication of complex number $z$ by $i$

The complex number $i z$ is a rotation of $z$ by $90^{\circ}$ or $\frac{\pi}{2}$ radians in the counter clockwise direction about the origin. In general, multiplication of a complex number $z$ by $i$ successively gives a $90^{\circ}$ counter clockwise rotation successively about the origin.

Illustration 2.2

Let $z_{1} = 6 + 7i$ and $z_{2} = 3 - 5i$. Then $z_{1} + z_{2}$ and $z_{1} - z_{2}$ are

Let $z_{1} = 2 + 3i$ and $z_{2} = 4 + 7i$. Then $z_{1}z_{2}$ is

Example 2.2

Find the value of the real numbers $x$ and $y$, if the complex number $(2 + i)x + (1 - i)y + 2i - 3$ and $x + (-1 + 2i)y + 1 + i$ are equal.

Solution

Let $z_{1} = (2 + i)x + (1 - i)y + 2i - 3 = (2x + y - 3) + i(x - y + 2)$ and $z_{2} = x + (-1 + 2i)y + 1 + i = (x - y + 1) + i(2y + 1)$.

Given that $z_{1} = z_{2}$

Equating real and imaginary parts separately, gives

Solving the above equations, gives

EXERCISE 2.2#

1. Evaluate the following if $z = 5 - 2i$ and $w = -1 + 3i$

   (i) $z + w$
   (ii) $z - iw$
   (iii) $2z + 3w$
   (iv) $zw$
   (v) $z^{2} + 2zw + w^{2}$
   (vi) $(z + w)^{2}$

2. Given the complex number $z = 2 + 3i$, represent the complex numbers in Argand diagram.

   (i) $z, iz$, and $z + iz$
   (ii) $z, -iz$, and $z - iz$

3. Find the values of the real numbers $x$ and $y$, if the complex numbers

   $$ (3 - i)x - (2 - i)y + 2i + 5 \text{ and } 2x + (-1 + 2i)y + 3 + 2i \text{ are equal}. $$

2.3 Basic Algebraic Properties of Complex Numbers#

The properties of addition and multiplication of complex numbers are the same as for real numbers. We list here the basic algebraic properties and verify some of them.

2.3.1 Properties of complex numbers#

Let us now prove some of the properties.

Property

The commutative property under addition

For any two complex numbers $z_{1}$ and $z_{2}$, we have $z_{1} + z_{2} = z_{2} + z_{1}$.

Proof

Let $z_{1} = x_{1} + i y_{1}$, $z_{2} = x_{2} + i y_{2}$, and $x_{1},x_{2},y_{1}$, and $y_{2}\in \mathbb{R}$

Property

Inverse Property under multiplication

Prove that the multiplicative inverse of a nonzero complex number $z = x + i y$ is

Proof

The multiplicative inverse is less obvious than the additive one.

Let $z^{-1} = u + iv$ be the inverse of $z = x + iy$

We have $z z^{-1} = 1$

That is $(x + i y)(u + i v) = 1$

Equating real and imaginary parts we get

Solving the above system of simultaneous equations in $u$ and $v$

Note that the above example shows the existence of $z^{-1}$ of the complex number $z$. To compute the inverse of a given complex number, we conveniently use $z^{-1} = \frac{1}{z}$. If $z_{1}$ and $z_{2}$ are two complex numbers where $z_{2} \neq 0$, then the product of $z_{1}$ and $\frac{1}{z_{2}}$ is denoted by $\frac{z_{1}}{z_{2}}$. Other properties can be verified in a similar manner. In the next section, we define the conjugate of a complex number. It would help us to find the inverse of a complex number easily.

Complex numbers obey the laws of indices#

(i) $z^{m}z^{n} = z^{m + n}$
(ii) $\frac{z^{m}}{z^{n}} = z^{m - n}, z \neq 0$
(iii) $(z^{m})^{n} = z^{m n}$
(iv) $(z_{1}z_{2})^{n} = z_{1}^{n} z_{2}^{n}$

EXERCISE 2.3#

1. If $z_{1} = 1 - 3i$, $z_{2} = -4i$, and $z_{3} = 5$, show that

   (i) $(z_{1} + z_{2}) + z_{3} = z_{1} + (z_{2} + z_{3})$
   (ii) $(z_{1}z_{2})z_{3} = z_{1}(z_{2}z_{3})$.

2. If $z_{1} = 3$, $z_{2} = -7i$, and $z_{3} = 5 + 4i$, show that

   (i) $z_{1}(z_{2} + z_{3}) = z_{1}z_{2} + z_{1}z_{3}$
   (ii) $(z_{1} + z_{2})z_{3} = z_{1}z_{3} + z_{2}z_{3}$.

3. If $z_{1} = 2 + 5i$, $z_{2} = -3 - 4i$, and $z_{3} = 1 + i$, find the additive and multiplicative inverse of $z_{1}$, $z_{2}$, and $z_{3}$.

2.4 Conjugate of a Complex Number#

In this section, we study about conjugate of a complex number, its geometric representation, and properties with suitable examples.

Definition 2.3

The conjugate of the complex number $x + iy$ is defined as the complex number $x - iy$.

The complex conjugate of $z$ is denoted by $\overline{z}$. To get the conjugate of the complex number $z$, simply change $i$ by $-i$ in $z$. For instance $2 - 5i$ is the conjugate of $2 + 5i$. The product of a complex number with its conjugate is a real number.

For instance,
(i) $(x + i y)(x - i y) = x^{2} - (i y)^{2} = x^{2} + y^{2}$
(ii) $(1 + 3i)(1 - 3i) = (1)^{2} - (3i)^{2} = 1 + 9 = 10$.

Geometrically, the conjugate of $z$ is obtained by reflecting $z$ on the real axis.

2.4.1 Geometrical representation of conjugate of a complex number#

Note

Two complex numbers $x + i y$ and $x - i y$ are conjugates to each other. The conjugate is useful in division of complex numbers. The complex number can be replaced with a real number in the denominator by multiplying the numerator and denominator by the conjugate of the denominator. This process is similar to rationalising the denominator to remove surds.

2.4.2 Properties of Complex Conjugates#

1. $ \overline{z_1 + z_2} = \overline{z_1} + \overline{z_2} $
2. $ \overline{z_1 - z_2} = \overline{z_1} - \overline{z_2} $
3. $ \overline{z_1 z_2} = \overline{z_1} \overline{z_2} $
4. $ \left( \frac{z_1}{z_2} \right) = \frac{\overline{z_1}}{\overline{z_2}}, \quad z_2 \neq 0 $
5. $ \text{Re}(z) = \frac{z + \overline{z}}{2} $
6. $ \text{Im}(z) = \frac{z - \overline{z}}{2i} $
7. $ \left( \overline{z}^n \right) = \left( \overline{z} \right)^n $, where $ n $ is an integer
8. $ z $ is real if and only if $ z = \overline{z} $
9. $ z $ is purely imaginary if and only if $ z = -\overline{z} $
10. $ \overline{z} = z $

Let us verify some of the properties.

Property#

For any two complex numbers $ z_1 $ and $ z_2 $, we have $ \overline{z_1 + z_2} = \overline{z_1} + \overline{z_2} $.

Proof Let $ z_1 = x_1 + iy_1, \quad z_2 = x_2 + iy_2 $, and $ x_1, x_2, y_1, $ and $ y_2 \in \mathbb{R} $

It can be generalized by means of mathematical induction to sums involving any finite number of terms:

Property#

Proof

Let

Then,

Therefore,

and

Therefore,

Property#

A complex number $z$ is purely imaginary if and only if $z = -\overline{z}$.

Proof

Let

Then by definition

Therefore,

Similarly, we can verify the other properties of conjugate of complex numbers.

Example 2.3

Write

in the $x + iy$ form, hence find its real and imaginary parts.

Solution

To find the real and imaginary parts of

first it should be expressed in the rectangular form $x + iy$. To simplify the quotient of two complex numbers, multiply the numerator and denominator by the conjugate of the denominator to eliminate $i$ in the denominator.

Therefore,

This is in the $x + iy$ form.

Hence real part is

and imaginary part is

Example 2.4

Simplify $\left(\frac{1 + i}{1 - i}\right)^{3} - \left(\frac{1 - i}{1 + i}\right)^{3}$ into rectangular form

Solution

We consider $\frac{1 + i}{1 - i} = \frac{(1 + i)(1 + i)}{(1 - i)(1 + i)} = \frac{1 + 2i - 1}{1 + 1} = \frac{2i}{2} = i$,

and $\frac{1 - i}{1 + i} = \left(\frac{1 + i}{1 - i}\right)^{-1} = \frac{1}{i} = -i$.

Therefore, $\left(\frac{1 + i}{1 - i}\right)^{3} - \left(\frac{1 - i}{1 + i}\right)^{3} = i^{3} - (-i)^{3} = -i - (-(-i))?$ Let’s compute carefully:

$i^{3} = -i$, $(-i)^{3} = (-1)^{3} i^{3} = -1 \cdot (-i) = i$

So $i^{3} - (-i)^{3} = -i - i = -2i$.

Example 2.5

If $\frac{z + 3}{z - 5i} = \frac{1 + 4i}{2}$, find the complex number $z$ in the rectangular form

Solution

We have $\frac{z + 3}{z - 5i} = \frac{1 + 4i}{2}$

Example 2.6

If $z_{1} = 3 - 2i$ and $z_{2} = 6 + 4i$, find $\frac{z_{1}}{z_{2}}$ in the rectangular form

Solution

Using the given value for $z_{1}$ and $z_{2}$ the value of $\frac{z_{1}}{z_{2}} = \frac{3 - 2i}{6 + 4i} = \frac{3 - 2i}{6 + 4i} \times \frac{6 - 4i}{6 - 4i}$

Example 2.7 Find $ z^{-1} $, if $ z = (2 + 3i)(1 - i) $.

Solution We have

Multiplying the numerator and denominator by the conjugate of the denominator, we get

Example 2.8 Show that (i)

is real and (ii)

is purely imaginary.

Solution (i)
Let

(ii)
Let

Here,

and

Now

Then by definition,

Therefore,

is purely imaginary.

EXERCISE 2.4#

1. Write the following in the rectangular form:
   (i) $\overline{(5 + 9i)} + (2 - 4i)$
   (ii) $\frac{10 - 5i}{6 + 2i}$
   (iii) $\frac{1}{3i} + \frac{1}{2 - i}$

2. If $z = x + iy$, find the following in rectangular form.
   (i) $\text{Re}\left( \frac{1}{z} \right)$
   (ii) $\text{Re}\left( i \bar{z} \right)$
   (iii) $\text{Im}(3z + 4\bar{z} - 4i)$

3. If $z_1 = 2 - i$ and $z_2 = -4 + 3i$, find the inverse of $z_1z_2$ and $\frac{z_1}{z_2}$

4. The complex numbers $u, v, w$ are related by


   $$ \frac{1}{u} = \frac{1}{v} + \frac{1}{w}.$$


   If $v = 3 - 4i$ and $w = 4 + 3i$, find $u$ in rectangular form.

5. Prove the following properties:
   (i) $z$ is real if and only if $z = \bar{z}$
   (ii) $\text{Re}(z) = \frac{z + \bar{z}}{2}$
   (iii) $\text{Im}(z) = \frac{z - \bar{z}}{2i}$

6. Find the least value of the positive integer $n$ for which


   $$ \left( \sqrt{3} + i \right)^n$$


   (i) real
   (ii) purely imaginary.

7. Show that


   $$ \left( 2 + i\sqrt{3} \right)^{10} - \left( 2 - i\sqrt{3} \right)^{10}$$


   is purely imaginary.
   (i)


   $$ \left( \frac{19 - 7i}{9 + i} \right)^{12} + \left( \frac{20 - 5i}{7 - 6i} \right)^{12}$$


   is real.

2.5 Modulus of a Complex Number#

Just as the absolute value of a real number measures the distance of that number from origin along the real number line, the modulus of a complex number measures the distance of that number from the origin in the complex plane. Observe that the length of the line from the origin along the radial line to $z = x + iy$ is simply the hypotenuse of a right triangle, with one side of length $x$ and the other side of length $y$.

Definition 2.4#

If $z = x + iy$, then the modulus of $z$, denoted by $|z|$, is defined by $|z| = \sqrt{x^2 + y^2}$.

For instance
(i) $|i| = \sqrt{0^2 + 1^2} = 1$
(ii) $|-12i| = \sqrt{0^2 + (-12)^2} = 12$
(iii) $|12 - 5i| = \sqrt{12^2 + (-5)^2} = \sqrt{169} = 13$

Note

If $z = x + iy$, then $\overline{z} = x - iy$, then $z \overline{z} = (x + iy)(x - iy) = (x^2 - iy^2) = x^2 + y^2 = |z|^2$.

2.5.1 Properties of Modulus of a complex number#

1. $|z| = |\overline{z}|$
2. $|z_1 + z_2| \leq |z_1| + |z_2|$ (Triangle inequality)
3. $|z_1 z_2| = |z_1| |z_2|$
4. $|z_1 - z_2| \geq |z_1| - |z_2|$
5. $\frac{|z_1|}{|z_2|} = \frac{|z_1|}{|z_2|}, \quad z_2 \neq 0$
6. $|z^n| = |z|^n$, where $n$ is an integer
7. $\text{Re}(z) \leq |z|$
8. $\text{Im}(z) \leq |z|$

Let us prove some of the properties.

Property Triangle inequality#

For any two complex numbers $z_1$ and $z_2$, we have $|z_1 + z_2| \leq |z_1| + |z_2|$.

Proof

Using

Geometrical interpretation#

Now consider the triangle shown in figure with vertices $O, z_1$ or $z_2$, and $z_1 + z_2$. We know from geometry that the length of the side of the triangle corresponding to the vector $z_1 + z_2$ cannot be greater than the sum of the lengths of the remaining two sides. This is the reason for calling the property as “Triangle Inequality”.

It can be generalized by means of mathematical induction to finite number of terms:

Property The distance between the two points $z_1$ and $z_2$ in complex plane is $|z_1 - z_2|$#

If $z_1 = x_1 + iy_1$ and $z_2 = x_2 + iy_2$, then

Remark#

The distance between the two points $z_1$ and $z_2$ in complex plane is $|z_1 - z_2|$.

If we consider origin, $z_1$ and $z_2$ as vertices of a triangle, by the similar argument we have

Property Modulus of the product is equal to product of the moduli.#

For any two complex numbers $z_1$ and $z_2$, we have $|z_1 z_2| = |z_1| |z_2|$.

Proof

We have

Therefore,

Note

It can be generalized by means of mathematical induction to any finite number of terms:

$$|z_1 z_2 z_3 \cdots z_n| = |z_1| |z_2| |z_3| \cdots |z_n|$$

That is the modulus value of a product of complex numbers is equal to the product of the moduli of complex numbers.

Similarly we can prove the other properties of modulus of a complex number.

Example 2.9

If $ z_1 = 3 + 4i $, $ z_2 = 5 - 12i $, and $ z_3 = 6 + 8i $, find $|z_1|$, $|z_2|$, $|z_3|$, $|z_1 + z_2|$, $|z_2 - z_3|$, and $|z_1 + z_3|$.

Solution

Using the given values for $ z_1, z_2, $ and $ z_3 $, we get

Note that the triangle inequality is satisfied in all the cases.

Example 2.10

Find the following

(i)

(ii)

(iii)

Solution

(i)

(ii)

(iii)

Example 2.11 Which one of the points $i, -2+i$, and 3 is farthest from the origin?

Solution The distance between origin to $z = i, -2+i$, and 3 are

Since $1 < \sqrt{5} < 3$, the farthest point from the origin is 3.

Example 2.12 If $z_1, z_2$, and $z_3$ are complex numbers such that $|z_1| = |z_2| = |z_3| = |z_1 + z_2 + z_3| = 1$,

find the value of $\frac{1}{z_1} + \frac{1}{z_2} + \frac{1}{z_3}$.

Solution Since, $|z_1| = |z_2| = |z_3| = 1$,

Therefore, $\overline{z_1} = \frac{1}{z_1}, \overline{z_2} = \frac{1}{z_2}, \text{ and } \overline{z_3} = \frac{1}{z_3}$ and hence

*Example 2.13 If $|z| = 2$ show that $3 \leq |z + 3 + 4i| \leq 7$

Solution

From (1) and (2), we get $3 \leq |z + 3 + 4i| \leq 7$.

Note To find the lower bound and upper bound use $\|z_1| - |z_2|\| \leq |z_1 + z_2| \leq |z_1| + |z_2|$.

Example 2.14

Show that the points $1$, $\frac{-1}{2} + i \frac{\sqrt{3}}{2}$, and $\frac{-1}{2} - i \frac{\sqrt{3}}{2}$ are the vertices of an equilateral triangle.

Solution

It is enough to prove that the sides of the triangle are equal.

Let $z_{1} = 1$, $z_{2} = \frac{-1}{2} + i \frac{\sqrt{3}}{2}$, and $z_{3} = \frac{-1}{2} - i \frac{\sqrt{3}}{2}$.

The length of the sides of the triangles are

Since the sides are equal, the given points form an equilateral triangle.

Example 2.15

Let $z_{1},z_{2}$, and $z_{3}$ be complex numbers such that $|z_{1}| = |z_{2}| = |z_{3}| = r > 0$ and $z_{1} + z_{2} + z_{3} \neq 0$

Prove that $\left|\frac{z_{1}z_{2} + z_{2}z_{3} + z_{3}z_{1}}{z_{1} + z_{2} + z_{3}}\right| = r$.

Solution

Given that

Now consider

We can also note that

Thus

Therefore

as required.

(given that $ z_1 + z_2 + z_3 \neq 0 $)

Thus,

**Example 2.16 **

Show that the equation $ z^2 = \bar{z} $ has four solutions.

Solution
We have,

Given $ z^2 = \bar{z} \Rightarrow z^2 = \frac{1}{z} \Rightarrow z^3 = 1.$

It has 3 non-zero solutions. Hence including zero solution, there are four solutions.

2.5.2 Square roots of a complex number#

Let the square root of $ a + ib $ be $ x + iy $

That is $ \sqrt{a + ib} = x + iy $ where $ x, y \in \mathbb{R} $

Equating real and imaginary parts, we get

Solving $ x^2 - y^2 = a $ and $ x^2 + y^2 = \sqrt{a^2 + b^2} $, we get

Since $ 2xy = b $ it is clear that both $ x $ and $ y $ will have the same sign when $ b $ is positive, and $ x $ and $ y $ have different signs when $ b $ is negative.

Therefore $ \sqrt{a + ib} = \pm \left( \sqrt{\frac{|z| + a}{2}} + i \frac{b}{|b|} \sqrt{\frac{|z| - a}{2}} \right), \text{ where } b \neq 0. \quad (\because \text{Re}(z) \leq |z|)$

Formula for finding square root of a complex number

Example 2.17

Find the square root of $6 - 8i$.

Solution

We compute $|6 - 8i| = \sqrt{6^{2} + (-8)^{2}} = 10$

and applying the formula for square root, we get

EXERCISE 2.5#

1. Find the modulus of the following complex numbers

   (i) $\frac{2i}{3 + 4i}$
   (ii) $\frac{2 - i}{1 + i} + \frac{1 - 2i}{1 - i}$
   (iii) $(1 - i)^{10}$
   (iv) $2i(3 - 4i)(4 - 3i)$.

2. For any two complex numbers $z_{1}$ and $z_{2}$, such that $|z_{1}| = |z_{2}| = 1$ and $z_{1}z_{2} \neq -1$, then show that $\frac{z_{1} + z_{2}}{1 + z_{1}z_{2}}$ is a real number.

3. Which one of the points $10 - 8i$, $11 + 6i$ is closest to $1 + i$.

4. If $|z| = 3$, show that $7 \leq |z + 6 - 8i| \leq 13$.

5. If $|z| = 1$, show that $2 \leq |z^{2} - 3| \leq 4$.

6. If $|z| = 2$, show that $8 \leq |z + 6 + 8i| \leq 12$.

7. If $z_{1},z_{2}$, and $z_{3}$ are three complex numbers such that $|z_{1}| = 1, |z_{2}| = 2, |z_{3}| = 3$ and $|z_{1} + z_{2} + z_{3}| = 1$, show that $|9z_{1}z_{2} + 4z_{1}z_{3} + z_{2}z_{3}| = 6$.

8. If the area of the triangle formed by the vertices $z$, $iz$, and $z + iz$ is 50 square units, find the value of $|z|$.

9. Show that the equation $z^{3} + 2\overline{z} = 0$ has five solutions.

10. Find the square roots of (i) $4 + 3i$ (ii) $-6 + 8i$ (iii) $-5 - 12i$.

2.6 Geometry and Locus of Complex Numbers#

In this section let us study the geometrical interpretation of complex number $z$ in complex plane and the locus of $z$ in Cartesian form.

Example 2.18

Given the complex number $z = 3 + 2i$, represent the complex numbers $z$, $iz$, and $z + iz$ in one Argand plane. Show that these complex numbers form the vertices of an isosceles right triangle.

Solution

Given that $z = 3 + 2i$

Therefore, $iz = i(3 + 2i) = -2 + 3i$

Let $A, B$, and $C$ be $z$, $z + iz$, and $iz$ respectively.

Since $AB^{2} + BC^{2} = CA^{2}$ and $AB = BC$, $\triangle ABC$ is an isosceles right triangle.

Definition 2.5 (circle)

A circle is defined as the locus of a point which moves in a plane such that its distance from a fixed point in that plane is always a constant. The fixed point is the centre and the constant distant is the radius of the circle.

Equation of Complex Form of a Circle#

The locus of $z$ that satisfies the equation $|z - z_{0}| = r$ where $z_{0}$ is a fixed complex number and $r$ is a fixed positive real number consists of all points $z$ whose distance from $z_{0}$ is $r$.

Therefore $|z - z_{0}| = r$ is the complex form of the equation of a circle. (see Fig. 2.23)

(i) $|z - z_{0}| < r$ represents the points interior of the circle.

(ii) $|z - z_{0}| > r$ represents the points exterior of the circle.

Illustration 2.3

Example 2.19

Show that $|3z - 5 + i| = 4$ represents a circle, and, find its centre and radius.

Solution

The given equation $|3z - 5 + i| = 4$ can be written as

It is of the form $|z - z_{0}| = r$ and so it represents a circle, whose centre and radius are $\left(\frac{5}{3}, -\frac{1}{3}\right)$ and $\frac{4}{3}$ respectively.

Example 2.20

Show that $|z + 2 - i| < 2$ represents interior points of a circle. Find its centre and radius.

Solution

Consider the equation $|z + 2 - i| = 2$.

This can be written as $|z - (-2 + i)| = 2$.

The above equation represents the circle with centre $z_{0} = -2 + i$ and radius $r = 2$. Therefore $|z + 2 - i| < 2$ represents all points inside the circle with centre at $-2 + i$ and radius 2 as shown in figure.

Example 2.21

Obtain the Cartesian form of the locus of $z$ in each of the following cases.

(i) $|z| = |z - i|$
(ii) $|2z - 3 - i| = 3$

Solution

(i) Let $z = x + iy$

Squaring both sides:

(ii) we have $|2z - 3 - i| = 3$

Squaring on both sides, we get

the locus of $z$ in Cartesian form.

EXERCISE 2.6#

1. If $ z = x + iy $ is a complex number such that


   $$ \left| \frac{z - 4i}{z + 4i} \right| = 1$$

   show that the locus of $ z $ is real axis.

2. If $ z = x + iy $ is a complex number such that


   $$ \text{Im} \left( \frac{2z + 1}{iz + 1} \right) = 0,$$

   show that the locus of $ z $ is


   $$ 2x^2 + 2y^2 + x - 2y = 0.$$

3. Obtain the Cartesian form of the locus of $ z = x + iy $ in each of the following cases:

   (i)

   $$ \text{Re}(iz) = 3$$

   (ii)

   $$ \text{Im}((1 - i)z + 1) = 0$$

   (iii)

   $$ |z + i| = |z - 1|$$

   (iv)

   $$ \overline{z} = z^{-1}.$$

4. Show that the following equations represent a circle, and, find its centre and radius.

   (i)

   $$ |z - 2 - i| = 3$$

   (ii)

   $$ |2z + 2 - 4i| = 2$$

   (iii)

   $$ |3z - 6 + 12i| = 8.$$

5. Obtain the Cartesian equation for the locus of $ z = x + iy $ in each of the following cases:

   (i)

   $$ |z - 4| = 16$$

   (ii)

   $$ |z - 4|^2 - |z - 1|^2 = 16.$$

   # EXERCISE 2.6

2.7 Polar and Euler form of a Complex Number#

When performing addition and subtraction of complex numbers, we use rectangular form. This is because we just add real parts and add imaginary parts; or subtract real parts, and subtract imaginary parts. When performing multiplication or finding powers or roots of complex numbers, use an alternate form namely, polar form, because it is easier to compute in polar form than in rectangular form.

2.7.1 Polar form of a complex number#

Polar coordinates form another set of parameters that characterize the vector from the origin to the point $z = x + iy$, with magnitude and direction. The polar coordinate system consists of a fixed point $O$ called the pole and the horizontal half line emerging from the pole called the initial line (polar axis). If $r$ is the distance from the pole to a point $P$ and $\theta$ is an angle of inclination measured from the initial line in the counter clockwise direction to the line $OP$, then $r$ and $\theta$ of the ordered pair $(r,\theta)$ are called the polar coordinates of $P$. Superimposing this polar coordinate system on the rectangular coordinate system, as shown in diagram, leads to

Any non-zero complex number $z = x + iy$ can be expressed as $z = r\cos \theta + i r\sin \theta$

Let $r$ and $\theta$ be polar coordinates of the point $P(x,y)$ that corresponds to a non-zero complex number $z = x + iy$. The polar form or trigonometric form of a complex number $P$ is

For convenience, we can write polar form as

The value $r$ represents the absolute value or modulus of the complex number $z$. The angle $\theta$ is called the argument or amplitude of the complex number $z$ denoted by $\theta = \arg(z)$.

(i) If $z = 0$, the argument $\theta$ is undefined; and so it is understood that $z = 0$ whenever polar coordinates are used.

(ii) If the complex number $z = x + iy$ has polar coordinates $(r,\theta)$, its conjugate $\overline{z} = x - iy$ has polar coordinates $(r, -\theta)$.

Squaring and adding the equations and taking square root, the value of $r$ is given by $r = |z| = \sqrt{x^2 + y^2}$.

Dividing the equations, $\frac{r\sin\theta}{r\cos\theta} = \frac{y}{x} \Rightarrow \tan \theta = \frac{y}{x}$.

Case (i) The real number $\theta$ represents the angle, measured in radians, that $z$ makes with the positive real axis when $z$ is interpreted as a radius vector. The angle $\theta$ has an infinitely many possible values, including negative ones that differ by integral multiples of $2\pi$. Those values can be determined from the equation $\tan \theta = \frac{y}{x}$ where the quadrant containing the point corresponding to $z$ must be specified. Each value of $\theta$ is called an argument of $z$, and the set of all such values is obtained by adding multiple of $2\pi$ to $\theta$, and it is denoted by $\arg z$.

Case (ii) There is a unique value of $\theta$ which satisfies the condition $-\pi < \theta \leq \pi$.

This value is called a principal value of $\theta$ or principal argument of $z$ and is denoted by $\operatorname{Arg} z$.

Note that,

Principal Argument of a complex number

The capital A is important here to distinguish the principal value from the general value.

Evidently, in practice to find the principal angle $\theta$, we usually compute $\alpha = \tan^{-1}\left|\frac{y}{x}\right|$ and adjust for the quadrant problem by adding or subtracting $\alpha$ with $\pi$ appropriately.

Some of the properties of arguments are

(4) The alternate forms of $\cos \theta + i\sin \theta$ are $\cos (2k\pi + \theta) + i\sin (2k\pi + \theta), \quad k \in \mathbb{Z}$

For instance the principal argument and argument of $1, i, -1$, and $-i$ are shown below:

Illustration

Plot the following complex numbers in complex plane

(i) $5\left(\cos \frac{\pi}{4} + i\sin \frac{\pi}{4}\right)$
(ii) $4\left(\cos \frac{2\pi}{3} + i\sin \frac{2\pi}{3}\right)$
(iii) $3\left(\cos \frac{-5\pi}{6} + i\sin \frac{-5\pi}{6}\right)$
(iv) $2\left(\cos \frac{\pi}{6} - i\sin \frac{\pi}{6}\right)$

2.7.2 Euler’s Form of the complex number#

The following identity is known as Euler’s formula

Euler formula gives the polar form $z = r e^{i\theta}$

Note

When performing multiplication or finding powers or roots of complex numbers, Euler form can also be used.

Example 2.22

Find the modulus and principal argument of the following complex numbers.

(i) $\sqrt{3} + i$
(ii) $-\sqrt{3} + i$
(iii) $-\sqrt{3} - i$
(iv) $\sqrt{3} - i$

Solution

(i) $\sqrt{3} + i$

Modulus $= \sqrt{x^2 + y^2} = \sqrt{(\sqrt{3})^2 + 1^2} = \sqrt{3 + 1} = 2$

Since the complex number $\sqrt{3} + i$ lies in the first quadrant, the principal value is

Therefore, the modulus and principal argument of $\sqrt{3} + i$ are $2$ and $\frac{\pi}{6}$ respectively.

(ii) $-\sqrt{3} + i$

Modulus $= 2$ and

Figure 2.37

Since the complex number $-\sqrt{3} + i$ lies in the second quadrant, the principal value is

Therefore the modulus and principal argument of $-\sqrt{3} + i$ are $2$ and $\frac{5\pi}{6}$ respectively.

(iii) $-\sqrt{3} - i$

$r = 2$ and $\alpha = \frac{\pi}{6}$.

Since the complex number $-\sqrt{3} - i$ lies in the third quadrant, the principal value is

Figure 2.38

Therefore, the modulus and principal argument of $-\sqrt{3} - i$ are $2$ and $-\frac{5\pi}{6}$ respectively.

(iv) $\sqrt{3} - i$

$r = 2$ and $\alpha = \frac{\pi}{6}$.

Since the complex number lies in the fourth quadrant, the principal value is

Figure 2.39

Therefore, the modulus and principal argument of $\sqrt{3} - i$ are $2$ and $-\frac{\pi}{6}$.

In all the four cases, modulus are equal, but the arguments are depending on the quadrant in which the complex number lies.

Example 2.23

Represent the complex number (i) $-1 - i$ (ii) $1 + i\sqrt{3}$ in polar form.

Solution

(i) Let $-1 - i = r(\cos \theta + i\sin \theta)$

We have $r = \sqrt{x^2 + y^2} = \sqrt{1^2 + 1^2} = \sqrt{2}$

Since the complex number $-1 - i$ lies in the third quadrant, it has the principal value

Therefore,

Note

Depending upon the various values of $k$, we get various alternative polar forms.

(ii) $1 + i\sqrt{3}$

Hence $\arg(z) = \frac{\pi}{3}$.

Therefore, the polar form of $1 + i\sqrt{3}$ can be written as

Example 2.24

Find the principal argument $\operatorname{Arg} z$, when $z = \frac{-2}{1 + i\sqrt{3}}$.

Solution

Figure 2.40

This implies that one of the values of $\arg z$ is $\frac{2\pi}{3}$.

Since $\frac{2\pi}{3}$ lies between $-\pi$ and $\pi$, the principal argument $\operatorname{Arg} z$ is $\frac{2\pi}{3}$.

Properties of polar form

Property 1 If $z = r(\cos \theta + i\sin \theta)$, then $z^{-1} = \frac{1}{r}(\cos \theta - i\sin \theta)$.

Proof

Figure 2.41

Property 2 If $z_{1} = r_{1}(\cos \theta_{1} + i\sin \theta_{1})$ and $z_{2} = r_{2}(\cos \theta_{2} + i\sin \theta_{2})$, then $z_{1}z_{2} = r_{1}r_{2}(\cos(\theta_{1} + \theta_{2}) + i\sin(\theta_{1} + \theta_{2}))$.

Figure 2.42

Proof

Note

Property 3#

If $ z_1 = r_1 (\cos \theta_1 + i \sin \theta_1) $ and $ z_2 = r_2 (\cos \theta_2 + i \sin \theta_2) $, then

Proof:
Using the polar form of $ z_1 $ and $ z_2 $, we have

Note

$$\arg\left(\frac{z_1}{z_2}\right) = \theta_1 - \theta_2 = \arg(z_1) - \arg(z_2).$$

Example 2.25 Find the product

in rectangular form.

Solution:
The Product

EXERCISE 2.7

1. Write in polar form of the following complex numbers
   (i) $2 + i2\sqrt{3}$
   (ii) $3 - i\sqrt{3}$
   (iii) $-2 - i2$
   (iv) $\frac{i - 1}{\cos\frac{\pi}{3} + i\sin\frac{\pi}{3}}$

2. Find the rectangular form of the complex numbers
   (i) $\left(\cos \frac{\pi}{6} + i\sin \frac{\pi}{6}\right) \left(\cos \frac{\pi}{12} + i\sin \frac{\pi}{12}\right)$
   (ii) $\frac{\cos \frac{\pi}{6} - i\sin \frac{\pi}{6}}{2\left(\cos \frac{\pi}{3} + i\sin \frac{\pi}{3}\right)}$

3. If $(x_{1} + i y_{1})(x_{2} + i y_{2})(x_{3} + i y_{3})\dots(x_{n} + i y_{n}) = a + i b$, show that

   (i) $(x_{1}^{2} + y_{1}^{2})(x_{2}^{2} + y_{2}^{2})(x_{3}^{2} + y_{3}^{2})\dots(x_{n}^{2} + y_{n}^{2}) = a^{2} + b^{2}$

   (ii) $\sum_{r=1}^{n} \tan^{-1}\left(\frac{y_{r}}{x_{r}}\right) = \tan^{-1}\left(\frac{b}{a}\right) + 2k\pi, \quad k \in \mathbb{Z}$.

4. If $\frac{1 + z}{1 - z} = \cos 2\theta + i\sin 2\theta$, show that $z = i\tan \theta$

5. If $\cos \alpha + \cos \beta + \cos \gamma = \sin \alpha + \sin \beta + \sin \gamma = 0$, show that

   (i) $\cos 3\alpha + \cos 3\beta + \cos 3\gamma = 3\cos(\alpha + \beta + \gamma)$ and
   (ii) $\sin 3\alpha + \sin 3\beta + \sin 3\gamma = 3\sin(\alpha + \beta + \gamma)$.

6. If $z = x + i y$ and $\arg\left(\frac{z - i}{z + 2}\right) = \frac{\pi}{4}$, show that $x^{2} + y^{2} + 3x - 3y + 2 = 0$.

2.8 De Moivre’s Theorem and it’s Applications#

Abraham De Moivre (1667-1754) was one of the mathematicians to use complex numbers in trigonometry.

The formula $(\cos \theta + i\sin \theta)^{n} = (\cos n\theta + i\sin n\theta)$ known by his name, was instrumental in bringing trigonometry out of the realm of geometry and into that of analysis.

Figure: Abraham De Moivre 1667-1754

2.8.1 De Moivre’s Theorem#

De Moivre’s Theorem

Given any complex number $\cos \theta + i\sin \theta$ and any integer $n$

Corollary

(1) $(\cos \theta - i\sin \theta)^{n} = \cos n\theta - i\sin n\theta$
(2) $(\cos \theta + i\sin \theta)^{-n} = \cos n\theta - i\sin n\theta$
(3) $(\cos \theta - i\sin \theta)^{-n} = \cos n\theta + i\sin n\theta$
(4) $\sin \theta + i\cos \theta = i(\cos \theta - i\sin \theta)$

Now let us apply De Moivre’s theorem to simplify complex numbers and to find solution of equations.

Example 2.28

If $z = (\cos \theta + i\sin \theta)$, show that $z^{n} + \frac{1}{z^{n}} = 2\cos n\theta$ and $z^{n} - \frac{1}{z^{n}} = 2i\sin n\theta$.

Solution

Let $z = (\cos \theta + i\sin \theta)$.

By De Moivre’s theorem,

Similarly,

Example 2.29

Simplify $\left(\sin \frac{\pi}{6} + i\cos \frac{\pi}{6}\right)^{18}$.

Solution

We have, $\sin \frac{\pi}{6} + i\cos \frac{\pi}{6} = i\left(\cos \frac{\pi}{6} - i\sin \frac{\pi}{6}\right)$.

Raising to the power 18 on both sides gives,

Therefore, $\left(\sin \frac{\pi}{6} + i\cos \frac{\pi}{6}\right)^{18} = 1$.

Example 2.30

Simplify $\left(\frac{1 + \cos 2\theta + i\sin 2\theta}{1 + \cos 2\theta - i\sin 2\theta}\right)^{30}$.

Solution

Let $z = \cos 2\theta + i\sin 2\theta$.

As $|z| = 1$, we get $\overline{z} = \frac{1}{z} = \cos 2\theta - i\sin 2\theta$.

Now,

Therefore,

Example 2.31

Simplify (i) $(1 + i)^{18}$ (ii) $(-\sqrt{3} + 3i)^{31}$.

Solution

(i) $(1 + i)^{18}$

Let $1 + i = r(\cos \theta + i\sin \theta)$. Then, we get

Raising to power 18 on both sides,

By De Moivre’s theorem,

(ii) $(-\sqrt{3} + 3i)^{31}$

Let $-\sqrt{3} + 3i = r(\cos \theta + i\sin \theta)$. Then, we get

Therefore,

2.8.2 The $n^{\text{th}}$ roots of a complex number#

De Moivre’s formula can be used to obtain roots of complex numbers. Suppose $ n $ is a positive integer and a complex number $ \omega $ is $ n^{th} $ root of $ z $ denoted by $ z^{1/n} $, then we have

Let $ \omega = \rho (\cos \phi + i \sin \phi) $ and

Since $ \omega $ is the $ n^{th} $ root of $ z $, then

By De Moivre’s theorem,

Comparing the moduli and arguments, we get

Therefore, the values of $ \omega $ are $ r^{1/n} (\cos (\frac{\theta + 2k\pi}{n}) + i \sin (\frac{\theta + 2k\pi}{n})), \quad k \in \mathbb{Z} $.

Although there are infinitely many values of $ k $, the distinct values of $ \omega $ are obtained when $ k = 0, 1, 2, 3, \ldots, n-1 $. When $ k = n, n+1, n+2, \ldots $ we get the same roots at regular intervals (cyclically). Therefore the $ n^{th} $ roots of complex number $ z = r (\cos \theta + i \sin \theta) $ are

If we set $\omega = \sqrt[n]{r e^{\frac{i(\theta + 2k\pi)}{n}}}$, the formula for the $n^{\text{th}}$ roots of a complex number has a nice geometric interpretation, as shown in Figure. Note that because $|\omega| = \sqrt[n]{r}$ the $n$ roots all have the same modulus $\sqrt[n]{r}$; they all lie on a circle of radius $\sqrt[n]{r}$ with centre at the origin. Furthermore, the $n$ roots are equally spaced along the circle, because successive $n$ roots have arguments that differ by $\frac{2\pi}{n}$.

Remark

(1) General form of De Moivre’s Theorem

If $x$ is rational, then $\cos x\theta + i\sin x\theta$ is one of the values of $(\cos \theta + i\sin \theta)^x$.

(2) Polar form of unit circle

Let $z = e^{i\theta} = \cos \theta + i\sin \theta$. Then, we get

Therefore, $|z| = 1$ represents a unit circle (radius one) centre at the origin.

2.8.3 The $n^{\text{th}}$ roots of unity#

The solutions of the equation $z^{n} = 1$, for positive values of integer $n$, are the $n$ roots of the unity. In polar form the equation $z^{n} = 1$ can be written as

Using De Moivre’s theorem, we find the $n^{\text{th}}$ roots of unity from the equation given below:

Given a positive integer $n$, a complex number $z$ is called an $n^{\text{th}}$ root of unity if and only if $z^{n} = 1$.

If we denote the complex number by $\omega$, then

Therefore $\omega$ is an $n^{\text{th}}$ root of unity. From equation (1), the complex numbers $1, \omega, \omega^{2}, \dots, \omega^{n-1}$ are $n^{\text{th}}$ roots of unity. The complex numbers $1, \omega, \omega^{2}, \dots, \omega^{n-1}$ are the points in the complex plane and are the vertices of a regular polygon of $n$ sides inscribed in a unit circle as shown in Fig 2.45. Note that because the $n^{\text{th}}$ roots all have the same modulus 1, they will lie on a circle of radius 1 with centre at the origin. Furthermore, the $n$ roots are equally spaced along the circle, because successive $n^{\text{th}}$ roots have arguments that differ by $\frac{2\pi}{n}$.

Figure 2.45

The $n^{\text{th}}$ roots of unity $1, \omega, \omega^{2}, \dots, \omega^{n-1}$ are in geometric progression with common ratio $\omega$.

Therefore $1 + \omega + \omega^{2} + \dots + \omega^{n-1} = \frac{1 - \omega^{n}}{1 - \omega} = 0$ since $\omega^{n} = 1$ and $\omega \neq 1$.

The sum of all the $n^{\text{th}}$ roots of unity is $1 + \omega + \omega^{2} + \dots + \omega^{n-1} = 0$.

The product of $n$, $n^{\text{th}}$ roots of unit is

The product of all the $n^{\text{th}}$ roots of unity is $1 \cdot \omega \cdot \omega^{2} \cdots \omega^{n-1} = (-1)^{n-1}$.

Since $|\omega| = 1$, we have $\omega \overline{\omega} = |\omega|^{2} = 1$; hence $\overline{\omega} = \omega^{-1} \Rightarrow (\overline{\omega})^{k} = \omega^{-k}, \quad 0 \leq k \leq n-1$

Therefore, $\boxed{\omega^{n-k} = \omega^{-k} = (\overline{\omega})^{k}}$, $0 \leq k \leq n-1$.

Note

(1) All the $n$ roots of $n^{\text{th}}$ roots unity are in Geometrical Progression

(2) Sum of the $n$ roots of $n^{\text{th}}$ roots unity is always equal to zero.

(3) Product of the $n$ roots of $n^{\text{th}}$ roots unity is equal to $(-1)^{n-1}$.

(4) All the $n$ roots of $n^{\text{th}}$ roots unity lie on the circumference of a circle whose centre is at the origin and radius equal to 1 and these roots divide the circle into $n$ equal parts and form a polygon of $n$ sides.

Example 2.32

Find the cube roots of unity.

Solution

We have to find $1^{\frac{1}{3}}$. Let $z = 1^{\frac{1}{3}}$ then $z^{3} = 1$.

In polar form, the equation $z^{3} = 1$ can be written as

Therefore, $z = \cos\left(\frac{2k\pi}{3}\right) + i\sin\left(\frac{2k\pi}{3}\right) = e^{i\frac{2k\pi}{3}}, \quad k = 0,1,2$.

Taking $k = 0,1,2$, we get,

$k = 0$: $z = \cos 0 + i\sin 0 = 1$

$k = 1$: $z = \cos \frac{2\pi}{3} + i\sin \frac{2\pi}{3} = \cos\left(\pi - \frac{\pi}{3}\right) + i\sin\left(\pi - \frac{\pi}{3}\right) = -\cos\frac{\pi}{3} + i\sin\frac{\pi}{3} = -\frac{1}{2} + i\frac{\sqrt{3}}{2}$

$k = 2$: $z = \cos \frac{4\pi}{3} + i\sin \frac{4\pi}{3} = \cos\left(\pi + \frac{\pi}{3}\right) + i\sin\left(\pi + \frac{\pi}{3}\right) = -\cos\frac{\pi}{3} - i\sin\frac{\pi}{3} = -\frac{1}{2} - i\frac{\sqrt{3}}{2}$

Therefore, the cube roots of unity are

Example 2.33

Find the fourth roots of unity.

Solution

We have to find $1^{\frac{1}{4}}$. Let $z = 1^{\frac{1}{4}}$. Then $z^{4} = 1$.

In polar form, the equation $z^{4} = 1$ can be written as

Therefore, $z = \cos\left(\frac{2k\pi}{4}\right) + i\sin\left(\frac{2k\pi}{4}\right) = e^{i\frac{2k\pi}{4}}, \quad k = 0,1,2,3$.

Taking $k = 0,1,2,3$, we get

$k = 0$: $z = \cos 0 + i\sin 0 = 1$

$k = 1$: $z = \cos\left(\frac{\pi}{2}\right) + i\sin\left(\frac{\pi}{2}\right) = i$

$k = 2$: $z = \cos \pi + i\sin \pi = -1$

$k = 3$: $z = \cos\left(\frac{3\pi}{2}\right) + i\sin\left(\frac{3\pi}{2}\right) = -i$

Therefore, the fourth roots of unity are $1, i, -1, -i$.

Figure 2.47

Note

(i) In this chapter the letter $\omega$ is used for $n^\text{th}$ roots of unity. Therefore the value of $\omega$ is depending on $n$ as shown in following table.

value of $n$	2	3	4	5	…	$k$
value of $\omega$	$e^{\frac{2\pi}{2}}$	$e^{\frac{2\pi}{3}}$	$e^{\frac{2\pi}{4}}$	$e^{\frac{2\pi}{5}}$	…	$e^{\frac{2\pi}{k}}$

(ii) The complex number $z e^{i\theta}$ is a rotation of $z$ by $\theta$ radians in the counter clockwise direction about the origin.

Example 2.34

Solve the equation $z^3 + 8i = 0$, where $z \in \mathbb{C}$.

Solution

Let

Then, we get

Therefore,

Taking $k = 0, 1, 2$, we get,

The values of $z$ are $\sqrt{3} - i, 2i$, and $-\sqrt{3} - i$.

Example 2.35

Find all cube roots of $\sqrt{3} + i$.

Solution

We have to find $(\sqrt{3} + i)^i$. Let $z = (\sqrt{3} + i)^i$. Then, $z^3 = \sqrt{3} + i = r(\cos \theta + i \sin \theta)$.

Then, $r = \sqrt{3} + 1 = 2$, and $\alpha = 0 = \frac{\pi}{6}$

Therefore, $z^3 = \sqrt{3} + i = 2 \left( \cos \frac{\pi}{6} + i \sin \frac{\pi}{6} \right)$

Taking $k = 0, 1, 2$, we get

Example 2.36

Suppose $z_1, z_2, \text{ and } z_3$ are the vertices of an equilateral triangle inscribed in the circle $|z| = 2$. If $z_1 = 1 + i\sqrt{3}$, then find $z_2$ and $z_3$.

Solution

$|z| = 2$ represents the circle with centre $(0, 0)$ and radius 2.

Let $A, B, \text{ and } C$ be the vertices of the given triangle. Since the vertices $z_1, z_2, \text{ and } z_3$ form an equilateral triangle inscribed in the circle $|z| = 2$, the sides of this triangle $AB, BC, \text{ and } CA$ subtend $\frac{2\pi}{3}$ radians (120 degree) at the origin (circumcenter of the triangle).

(The complex number $z e^{i\theta}$ is a rotation of $z$ by $\theta$ radians in the counter clockwise direction about the origin.)

Therefore, we can obtain $z_2$ and $z_3$ by the rotation of $z_1$ by $\frac{2\pi}{3}$ and $\frac{4\pi}{3}$ respectively.

Given that

EXERCISE 2.8

1. If $\omega \neq 1$ is a cube root of unity, show that $\frac{a + b\omega + c\omega^{2}}{b + c\omega + a\omega^{2}} + \frac{a + b\omega + c\omega^{2}}{c + a\omega + b\omega^{2}} = -1$.

2. Show that $\left(\frac{\sqrt{3}}{2} + \frac{i}{2}\right)^{5} + \left(\frac{\sqrt{3}}{2} - \frac{i}{2}\right)^{5} = -\sqrt{3}$.

3. Find the value of $\left(\frac{1 + \sin\frac{\pi}{10} + i\cos\frac{\pi}{10}}{1 + \sin\frac{\pi}{10} - i\cos\frac{\pi}{10}}\right)^{10}$.

4. If $2\cos \alpha = x + \frac{1}{x}$ and $2\cos \beta = y + \frac{1}{y}$, show that

   (i) $\frac{x}{y} + \frac{y}{x} = 2\cos(\alpha - \beta)$
   (ii) $xy - \frac{1}{xy} = 2i\sin(\alpha + \beta)$
   (iii) $\frac{x^{m}}{y^{m}} - \frac{y^{n}}{x^{m}} = 2i\sin(m\alpha - n\beta)$
   (iv) $x^{m}y^{n} + \frac{1}{x^{m}y^{n}} = 2\cos(m\alpha + n\beta)$.

5. Solve the equation $z^{3} + 27 = 0$.

6. If $\omega \neq 1$ is a cube root of unity, show that the roots of the equation $(z - 1)^{3} + 8 = 0$ are $-1, 1 - 2\omega, 1 - 2\omega^{2}$.

7. Find the value of $\sum_{k=1}^{8} \left(\cos \frac{2k\pi}{9} + i\sin \frac{2k\pi}{9}\right)$.

8. If $\omega \neq 1$ is a cube root of unity, show that

   (i) $(1 - \omega + \omega^{2})^{6} + (1 + \omega - \omega^{2})^{6} = 128$
   (ii) $(1 + \omega)(1 + \omega^{2})(1 + \omega^{4})(1 + \omega^{8})\cdots(1 + \omega^{2^{11}}) = 1$.

9. If $z = 2 - 2i$, find the rotation of $z$ by $\theta$ radians in the counter clockwise direction about the origin when

   (i) $\theta = \frac{2\pi}{3}$
   (ii) $\theta = \frac{2\pi}{3}$
   (iii) $\theta = \frac{3\pi}{2}$.
